            LHVC7/LHVC12 vacuum contactor ( Vacuum Interrupter by ABB )


            powered by abb
            powered by abb

            LHVC7/LHVC12真空接觸器
            LHVC7/LHVC12真空接觸器

                     1.Technical Data

            Item

            Unit

            Data





            LHVC7

            LHVC12

            LHVC/P

            Main circuit

            Rated operational voltage(Ue)

            kV

            7.2

            12

            7.2

            12

            Rated operational current(Ie)

            A

            400

            400

            ≤315
            (due to fuse)

            ≤200
            (due to fuse)

            Rated frequency(fr)

            Hz

            50/60

            Rated making capacity

            kA

            4.0

            Rated breaking capacity

            kA

            3.2

            Rated short time withstand current

            kA

            6.0

            Rated peak withstand current

            kA

            15

            Rated short circuit duration

            s

            1

            Rated expected short circuit breaking current

            kA

            /

            ≤50 (due to fuse)

            Rated expected short circuit closing current

            kA

            100

            Take-over current

            kA

            4.0

            Power frequency withstand voltage

            Between phases, phase to earth

            kV

            32

            42

            32

            42

            Vacuum breaks

            kV

            32

            42

            32

            42

            Lightening impulse withstand voltage

            kV

            60

            75

            60

            75

            Resistance

            μΩ

            ≤150

            ≤150

            ≤300 (due to fuse)

            Control circuit

            Rated voltage (Us)

            V

            AC or DC.110/220

            Rated power (Ps)?

            Electric holding

            VA

            ≤1000/100 (absorbing/holding)

            Mechanical holding

            VA

            ≤1200/800 (closing/opening)

            ≤1200/350 (closing/opening)

            Control mode



            E type: electric holding; M type; mechanical holding

            Auxiliary circuit

            Form



            5a+5b

            6a+6b

            Rated value



            AC 220V/5A

            Control circuit, auxiliary circuit to earth power frequency withstand voltage

            kV

            2

            Rated operating frequency

            Long-term or mechanical holding type

            time/h

            300

            Short-term

            time/h

            600

            Mechanical endurance

            10000 times

            100

            100

            30

            Electrical endurance

            10000 times

            10(AC-3)

            Closing time

            ms

            45-65

            ≤150

            Mechanical characteristics

            Original opening time

            ms

            25-40 (electric holding)
            15-30(mechanical holding)

            ≤150 (electric holding)
            ≤60(mechanical holding)

            3-phase synchronism

            ms

            ≤3

            Net weight

            kg

            26 (electric holding)
            28(mechanical holding)

            81(without fuse)


            Normal Operating Conditions for Vacuum Contactors
            The altitude at the installation location should not exceed 1000m;
            The maximum ambient air temperature shall not exceed +40 ℃, with an average value measured within 24 hours not exceeding +35 ℃. The minimum ambient temperature shall not fall below –15 ℃;
            The average relative humidity measured over 24 hours shall not exceed 90%, and the average water vapor pressure measured within 24 hours shall not exceed 1.8 kPa;
            The ambient air should be free from noticeable contamination by dust, smoke, corrosive and/or flammable gases, water vapor, salt mist, or similar pollutants.

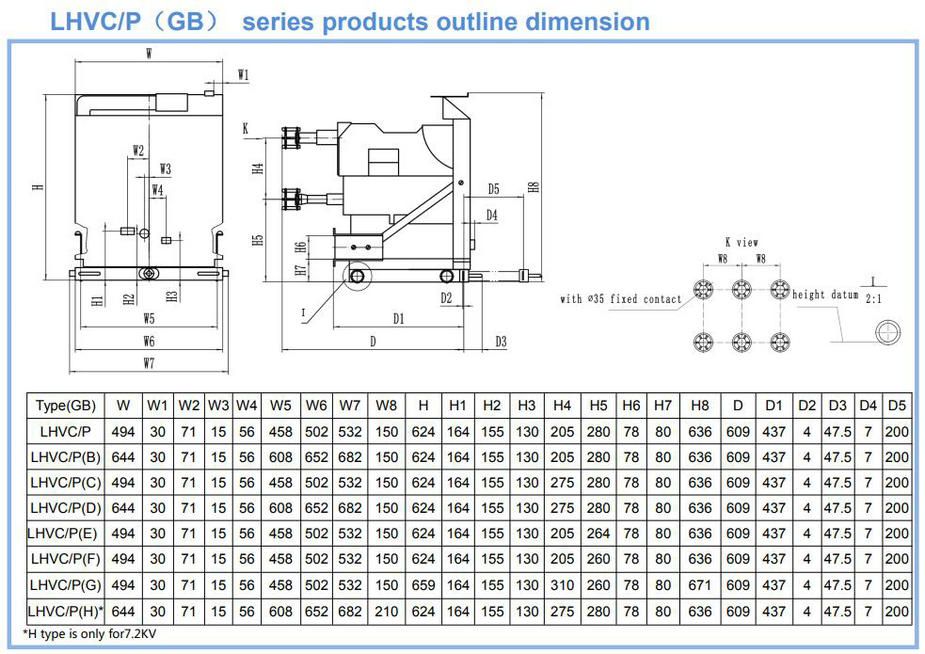

                     2. Drawing

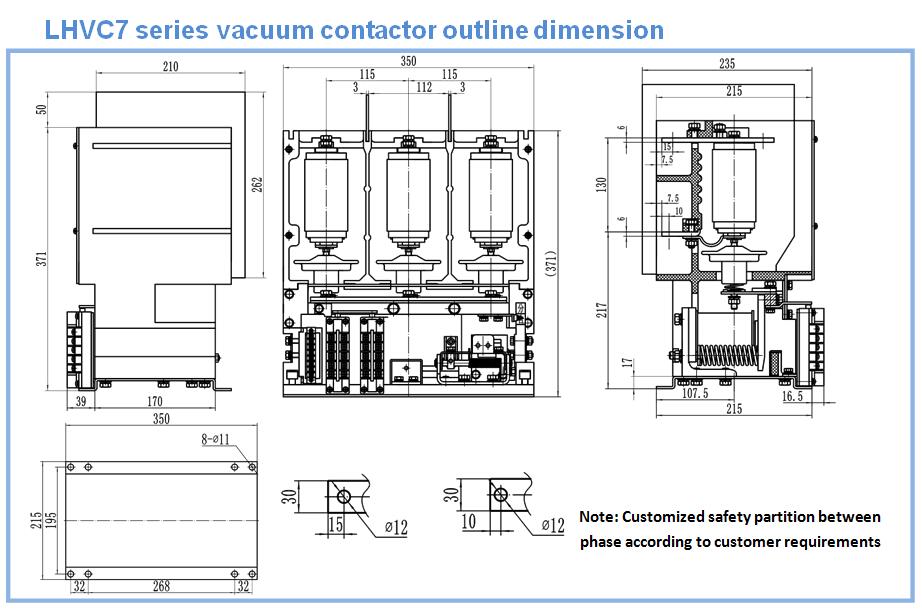

            LHVC7 vacuum contavtor

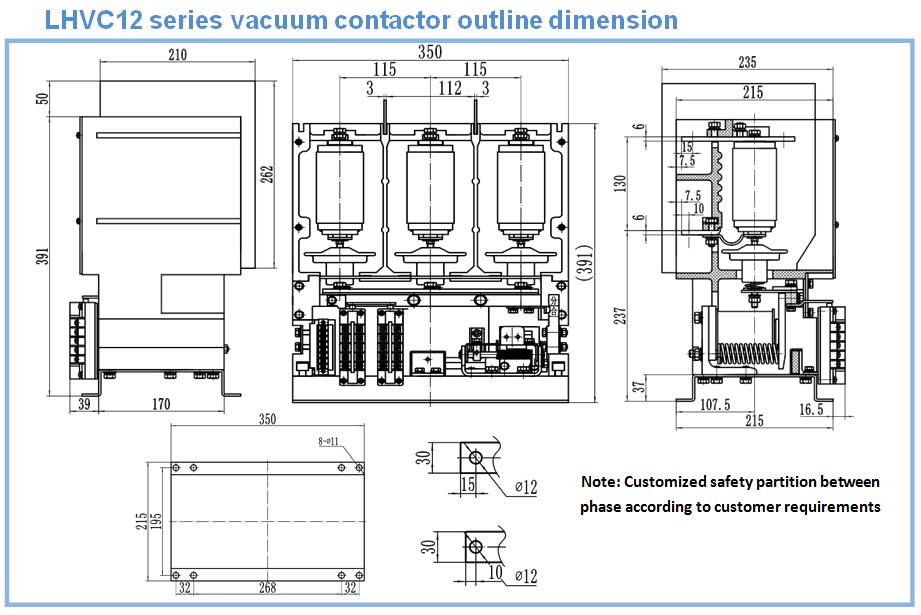

            LHVC12 vacuum contavtor

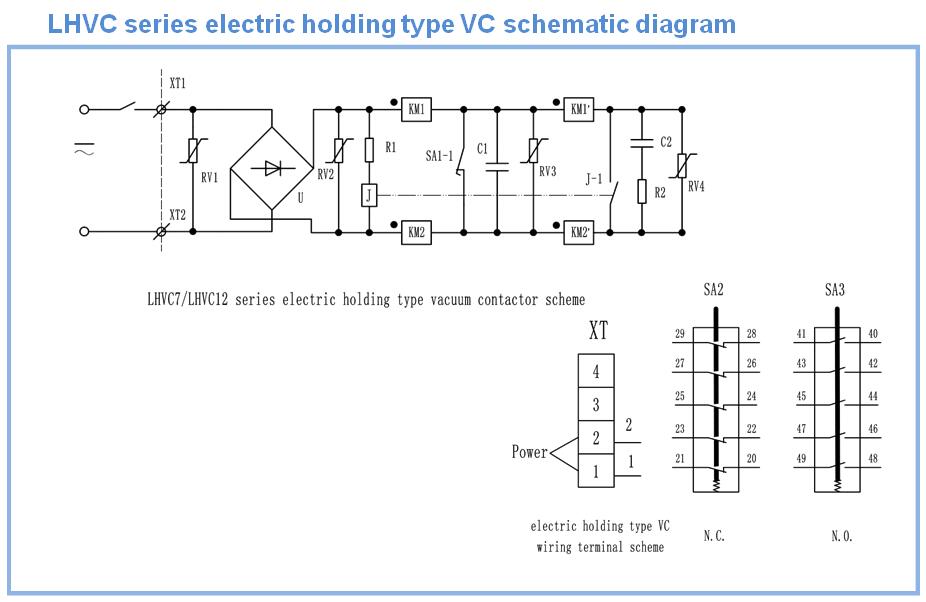

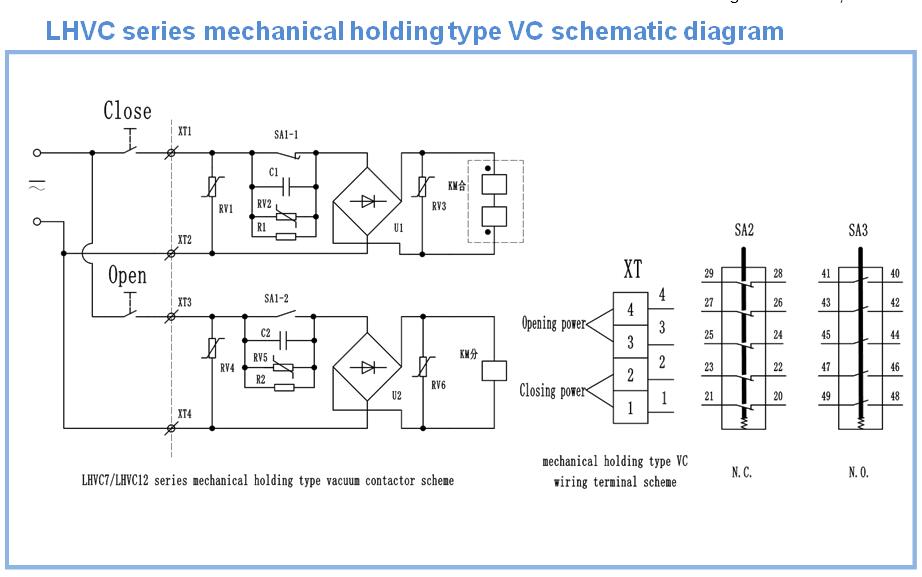

            LHVC7/LHVC12 mechanical holding type secondary control diagram

            LHVC7/LHVC12電保持型二次控制原理圖

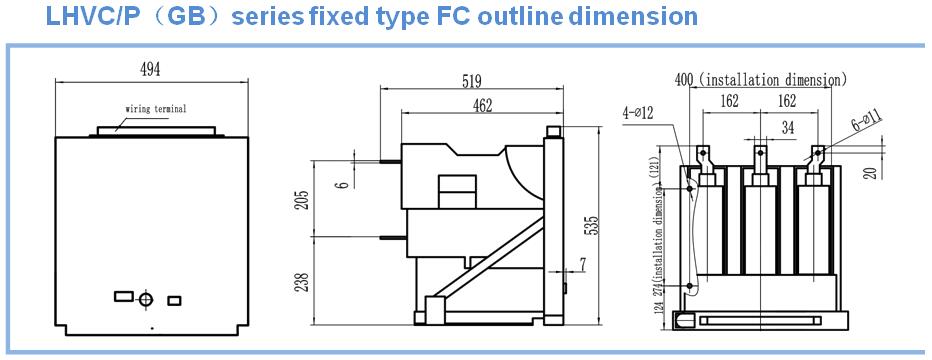

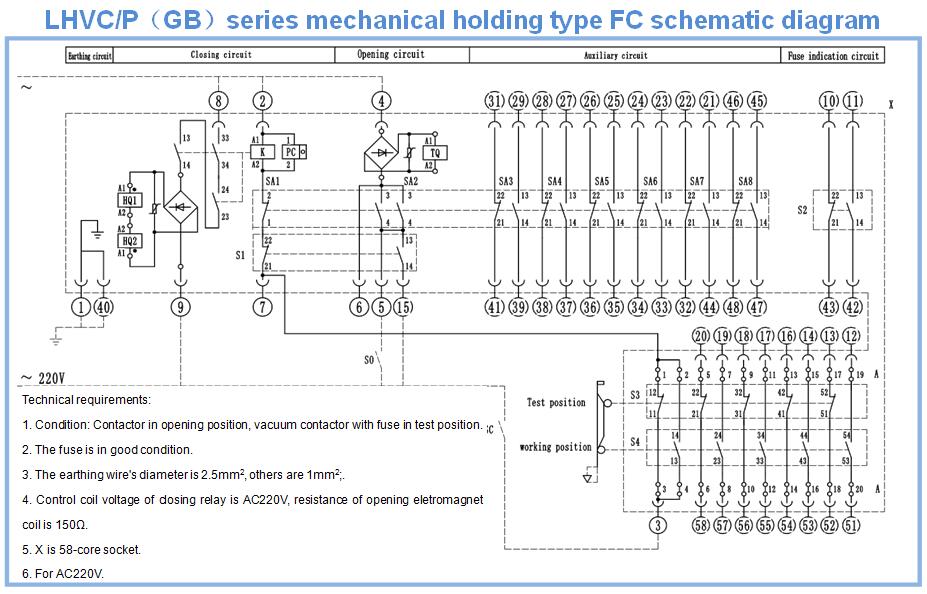

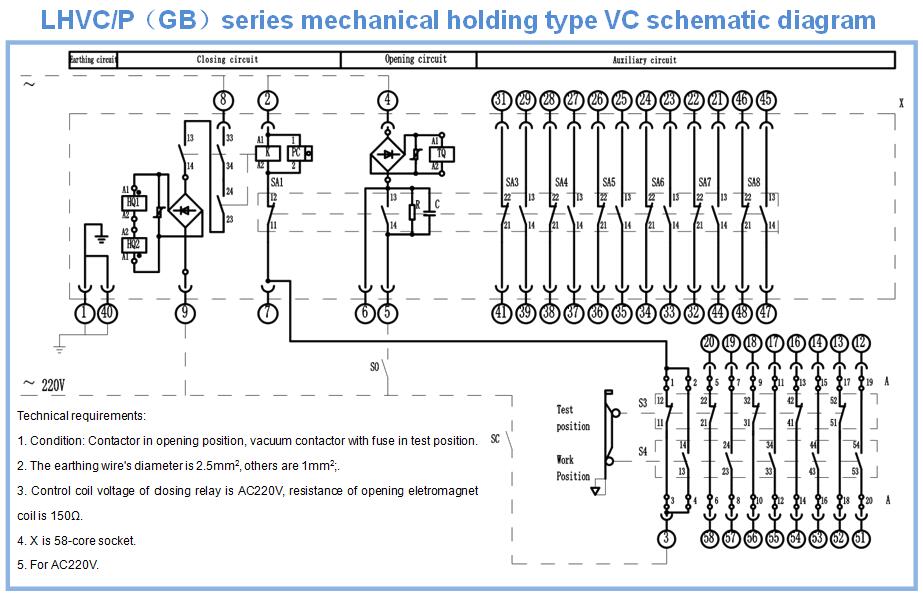

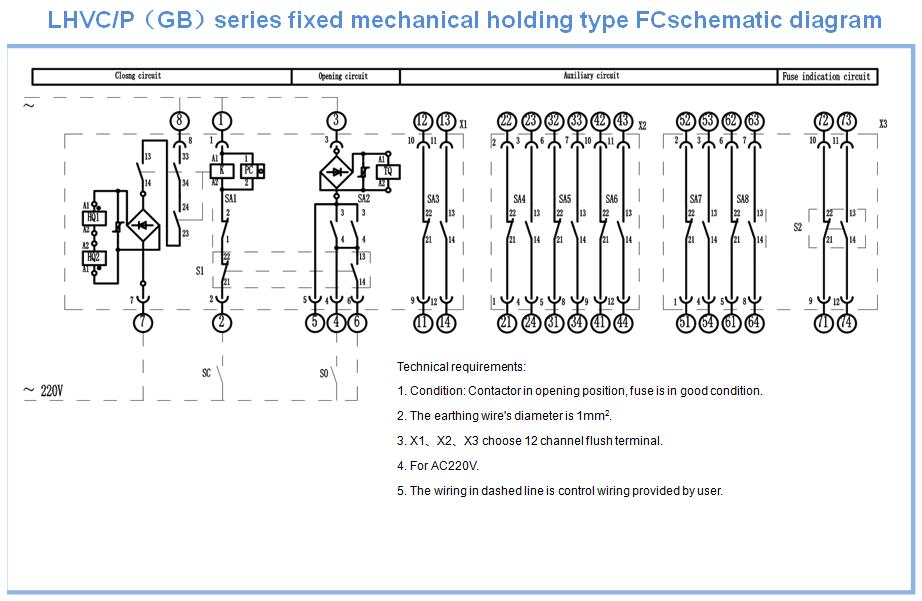

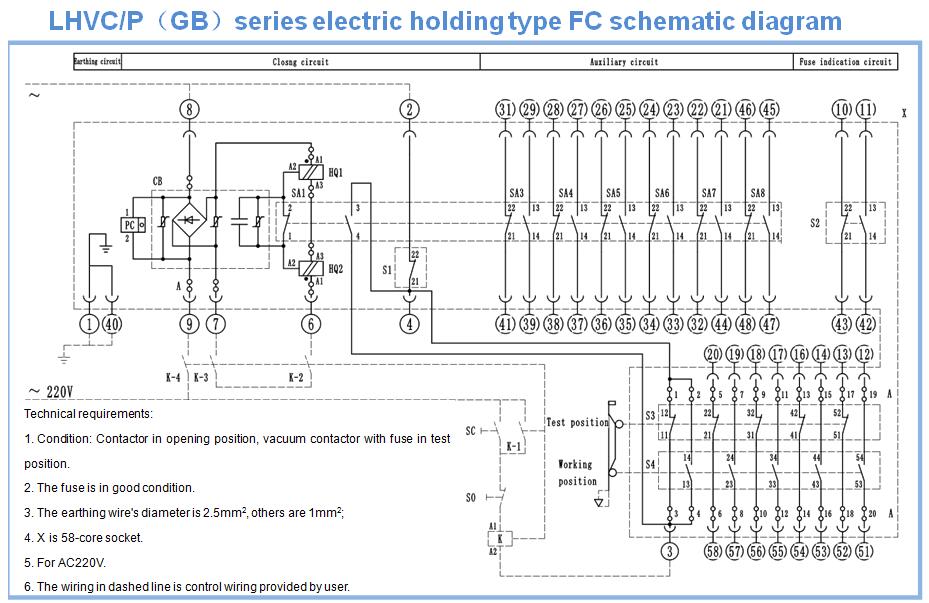

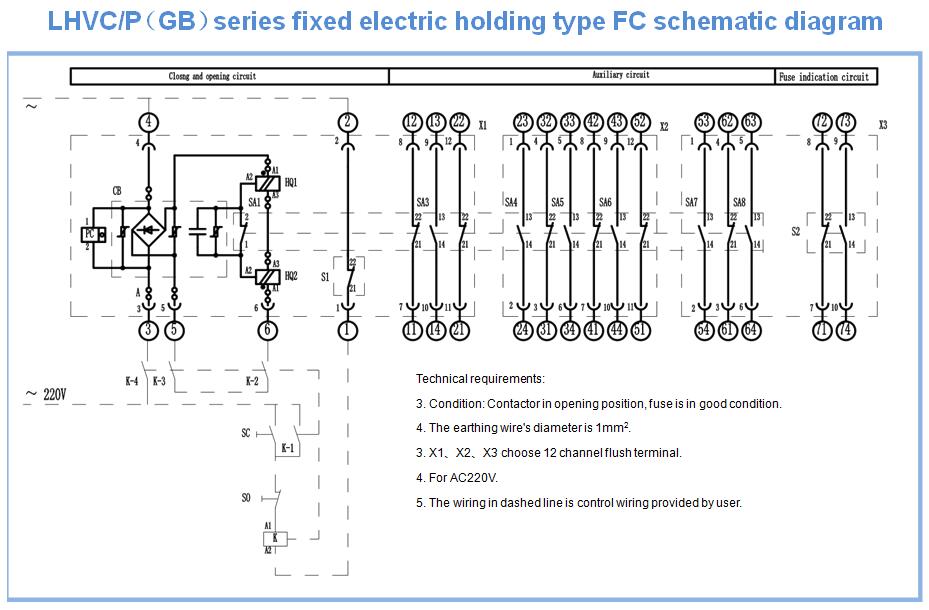

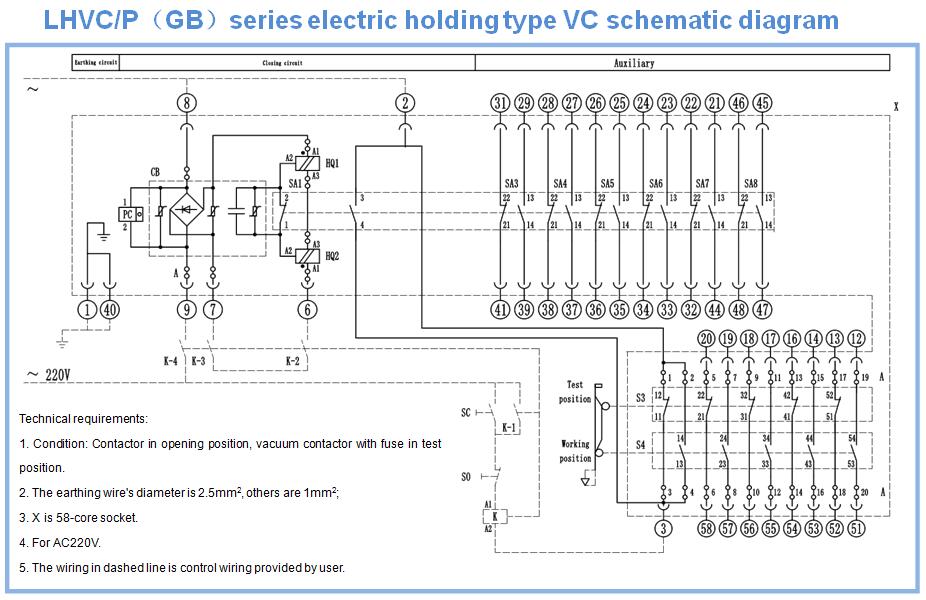

            LHVC/P12 vacuum contavtor






            Symbol

            Name

            Function

            Symbol

            Name

            Function

            SA

            Auxiliary switch

            Circuit switching

            X

            Socket

            Control wires collection

            S3

            Limit switch in test position

            Circuit switching

            A

            Wiring terminal

            Components connection

            S4

            Limit switch in working position

            Circuit switching

            K

            Closing relay

            Contactor closing control

            S1、S2

            Fuse mode switch

            Fuse checking

            TQ

            Opening eletromagnet

            Contactor opening control

            HQ1
            HQ2

            Closing coil

            Contactor? closing components

            SC

            Closing control button or switch

            Contactor closing? control by user

            CB

            Control power box

            Rectifier components

            SO

            Opening control button or switch

            Contactor opening control by user

            PC

            Counter

            Circuit switching












              Copyright ajetr.org Wuxi Lanhong Electric Co., Ltd.
